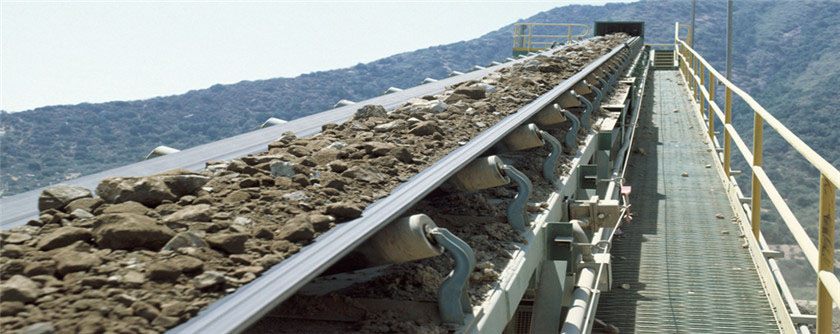

If the joint is not properly conveyed and the transverse section is not perpendicular to the center line of the conveyor belt, a longer distance will occur. At this time, the joint must be cut back to ensure that the joint is perpendicular to the center of the conveyor belt. If the coal removed by the transfer machine falls below the middle of the conveyor belt, it will cause a long distance deviation. This should first check if the trough belt conveyor is out of alignment and the placement is not accurate. Or because the coal is not correct, the conveyor belt is off. This should first straighten the tail of the machine, especially the tail drum, and the blanking point is still biased, and then adjust the position of the blanking guide.
When the trough belt conveyor is long, the idler spacing can be determined indefinitely. Through the difficult and reasonable arrangement of the belt conveyor, and optimize the layout, can greatly reduce the amount of roller, its superiority is very obvious. If the number of rollers is reduced by half, the equipment investment will be drastically reduced. The number of rollers is reduced, the conveyor running resistance is reduced, the power consumption is reduced, and the energy is saved.The deviation of conveyor belt is very common.There are several methods for judging and adjusting the deviation phenomenon. If the conveyor belt is often running in a certain section during the operation, first observe whether the installation is inclined or not straight. If the installation quality is no problem, adjust the support. Roller or roller to reset the belt. Use the roller to adjust the deviation. Generally, when the deviation occurs frequently in a certain section, adjust the position by using the roller to adjust. To adjust the roller, one or several rollers that are biased to the side of the conveyor belt are moved forward in the running direction of the conveyor belt. The adjustment of the trough-shaped idler of the upper load-bearing section can be realized by fine-tuning the saddle of the hanging strut on the light strut or hanging on the saddle to change the trough, and the lower auxiliary auxiliary adjustment is realized by the idler shaft adjusting groove. Generally speaking, the roller adjustment starts from the deviation point, and the adjustment amount of each roller is small, and the number of rollers is adjusted several times, which is better. When using the rolling to adjust the deviation of the deviation conveyor belt at the reversing drum, it is generally biased to which side, that is, which roller shaft is moved forward by one distance along the conveying direction of the conveyor belt.
