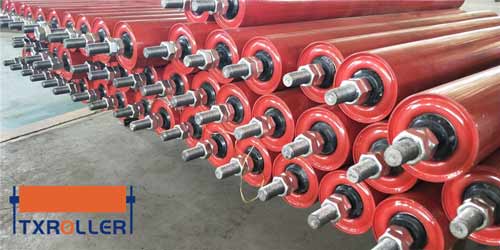

Conveyor Belts are normally upheld on belt conveyor idler rollers. Now and again they are bolstered by strong wood or runway of steel sheet or a blend bolster involving the two kinds of backings put on the other hand.

There are two fundamental sorts of idlers:
Carrying Idlers:
The most usually utilized sort of carrying idler utilized for taking care of mass load comprise of three in line idler moves of equivalent length. The three equivalent length roll troughing idlers frame the belt into the best troughed shape to convey a greatest load cross segment.
For dealing with unit stack or for taking care of ostensible mass load, or for supporting belt consequently side, straight idlers are utilized, situated between sections connected specifically to the transport outline. Another sort of conveying idlers is utilized at the stacking focuses where the bump estimate and the heaviness of the material mama truly harm the belt if the belt were unbendingly upheld. Such idlers are called affect idlers. The most as often as possible utilized kind of effect idlers comprise of a three move gathering, each roll being made of separated strong circles. These idlers are otherwise called pad idlers.
Return rollers:
The return idlers which convey the heaviness of the vacant belt in the arrival side or the lower side of the transport are for the most part single roller straight idler. The primary measurements of the idler are the distance across and length. The measurements in millimeters of conveying and return idlers should be chosen from the accompanying:
63.5, 76.1, 88.9, 101.6, 108, 114.3, 127, 133, 139.7, 152.4, 168.3, 193.7.

conveyor roller spacing:
The spacing of idlers on the stacked keep running of the transport, conveying mass material, relies upon the belt width, the particular weight of the mass material, the kind of the idler. The separating of the idlers in the stacking zone of the belt is about a large portion of the typical dividing of idlers in the conveying side.
An arrangement of self adjusting idler or preparing idler ought to be given at the conveying side and return side at an interim of 15m on the conveying run and 30m at the arrival run. It comprises of a standard troughed three roller idler mounted on swivel outline which is allowed to swivel inside a cutoff about a vertical turn. At the point when the belt moves off the crane the edge contacts on impelling roller with a slight weight and this makes the idler take a skewed position when a power demonstrations which tends to guide the belt back to its focal position. As the belt comes back to its focal position, it naturally restores the idler to its underlying position.
The conveyor idler along the conveying and return side offer moving protection from the movement of the belt. It is considered by a fake coefficient of erosion, dimensionless, including moving protection of the idlers along the conveying and return sides of belt and the belt progression protection. This coefficient of grating has an essential estimation of 0.02 for ordinarily adjusted belt transports and the same has a fundamental estimation of 0.012 for downhill transport requiring a brake engine.
The essential estimation of 0.02 of the coefficient of rubbing is just appropriate to establishments utilized at 70% to 110% of their ostensible limit, outfitted with three roll conveying idlers for the upper side of the belt, a 30° side troughing edge, belt speed of around 5 m/s, encompassing temperature of around 20°C, and 108 to 159 mm breadth conveying idlers with metal roller and maze oil seals, together with idler dispersing of 1.0 to 1.5m for the conveying side and 3 m for the arrival side of the belt.
Under good conditions, for example, appropriately adjusted establishments to legitimately greased up metal rollers, the estimation of the coefficient of grating might be as low as 0.016. For negative conditions, for example, inadequately adjusted belt transports with old heading ‘f’ might be as high as 0.03.
